Large Scale Model Railroad Plans

PLAN PRICE LIST FOR BRIDGES

Return to home page

PHOTOS of BRIDGES and TRESTLES

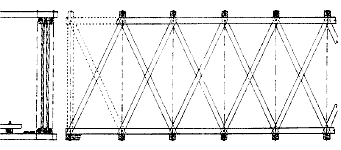

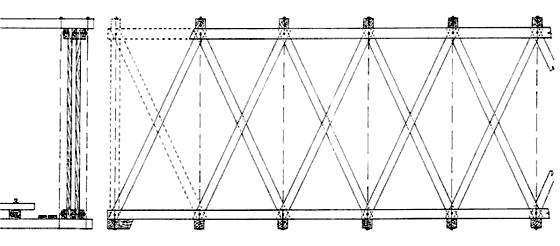

Howe Truss Bridge

up to 51" long




One Sheet

$10.50 U.S. Funds

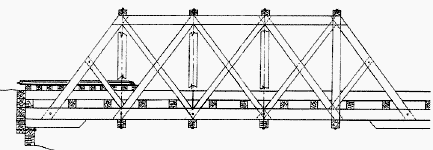

Thru Truss Bridge

 28.5" long




One Sheet

$10.50 U.S. Funds

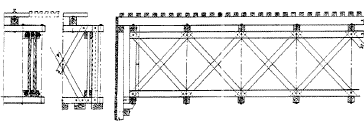

Deck Truss Bridge

up to 40" long, includes plan for wood abutment.




One Sheet

$10.50 U.S. Funds

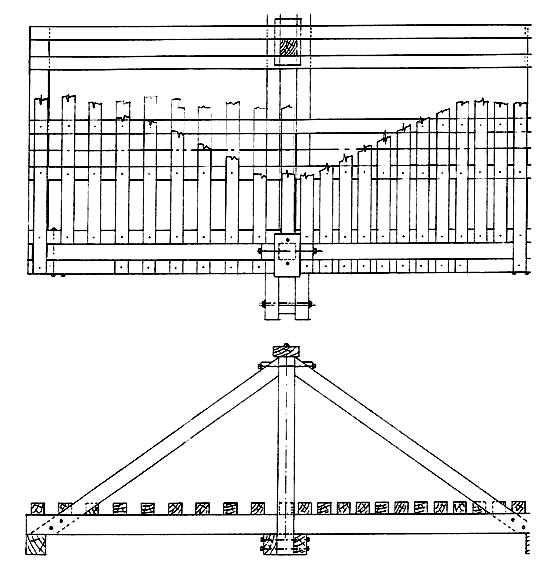

King Post Truss Bridge

  20" long


 One Sheet

$10.50 U.S. Funds

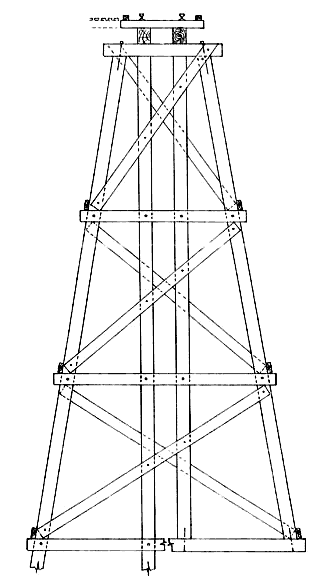

Trestle Bent

 up to 26" or higher if required




 One Sheet

$10.50 U.S. Funds



5 Wooden Bridge Plans




Includes Howe Truss Bridge, Thru Truss Bridge, Deck Truss Bridge, King Post Truss Bridge, & Trestle Bent.
Five Sheets

$42.50 U.S. Funds

Vermont Covered Railroad Bridge

30" to 72" as required, it is authentic compared to other covered bridge plans and is best suited for more experienced builders.

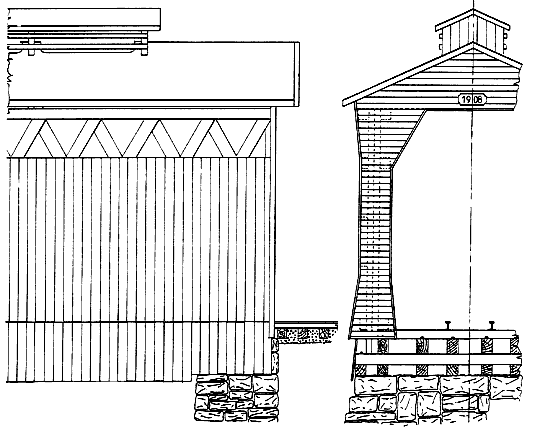

Covered-Bridge drawing

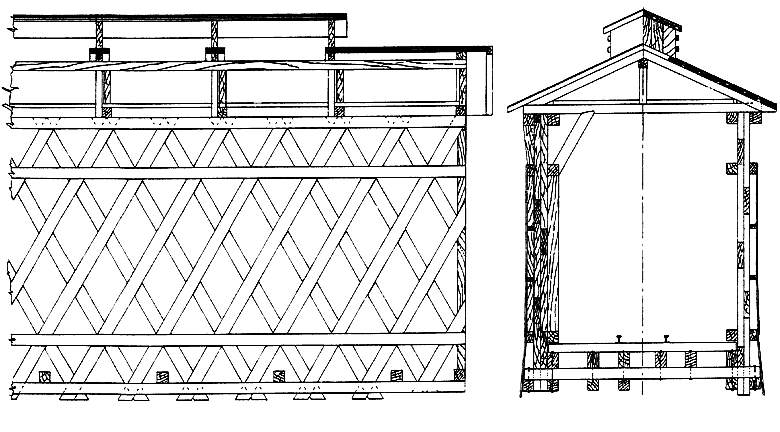

Covered Bridge construction drawing

Two Sheets

$17.50 U.S. Funds

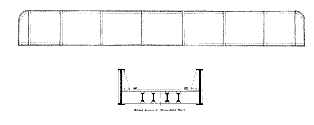

NEW!D.& R.G. Plate Girder Bridge

31.5" long, but can be modified to suit.  The bridge is of all-glued construction using readily available Plastruct sheet, beams, and angles.

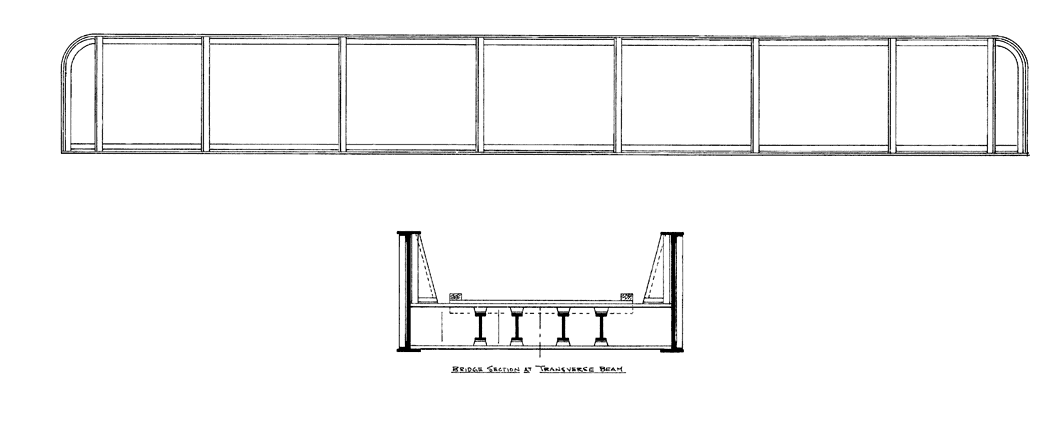

drawing - plate girder bridge  One Sheet

$10.50 U.S. Funds

  PHOTOS of BRIDGES and TRESTLES

 A few words on scale.



Plan prices include instructions, and consultation by phone if required.



We accept Visa, MasterCard, US & CDN personal checks & Money Orders (be sure they are cashable outside the US) by mail or phone. Western Union money transfers can also be used, please e-mail details to brewer@island.net  Make checks, money orders and Western Union transfers payable to Ted Brewer or Brewer Railroad Plans.

No COD's, debit cards, or direct bank transfers please.



All prices are in US Funds.

Canadians please add GST/HST on the total including postage.

We do not share customer information with anyone without their express permission.

We ship airmail, use the table below to calculate shipping costs:

order size Canadian United States Other International
1 sheet $1.25 $2.50 $4.50
2 or 3 sheets $2.25 $4.00 $7.50
4 or 5 sheets $3.00 $5.00 $14.00
6 to 10 sheets $3.50 $8.00 $16.00
11 to 15 sheets $6.00 $15.00 $28.00

For larger orders, express shipping, or rolled plans,

please contact us so we can compute correct shipping costs.

All plans are sold on a no exchange, no return basis.

Contact us at:

  Brewer Plans

1825 Evergreen Drive

Agassiz, BC CANADA V0M 1A3

E-mail: brewer@island.net

 Tel: 604-796-3732 Fax: 604-796-3738

Return to home page

current revision 26 May 2011
